Delrin Rear High Clearance Link Pair

$16.95
SKU:
CWR-5010
Rating:
5 Stars
Quantity:

Product Description

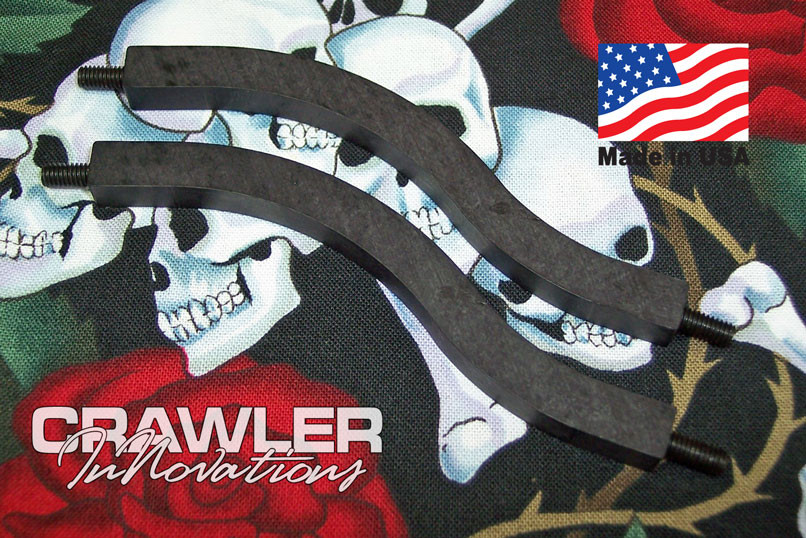

This Crawler Innovations Rear High Clearance Delrin links are CNC cut from 1/4 thick sheet delrin. They are designed to be a "universal" link in order to work with any brand chassis on the market.

Crawler Innovations high clearance rear links have 20mm x 4mm .7 thread pitch studs. The 4mm .7 thread pitch is an exact match to all Traxxas Revo #5347 rod end or the Traxxas Jato #5525 rod end.

The Rear high clearance delrin links measures 5" or 128mm eye to eye when used with the Revo rod end. When used with Jato rod ends it measures 5 3/4" or 145mm eye to eye.

Crawler Innovations high clearance rear links have 5/8" of straight to each end of the link. The purpose for this design is to allow for modification of placement of the arch. If you remove 1/4" from either side of the link and use a Jato rod end on the opposite side, you can move the arch forward or backwards. This way you can tune the link placement for clearance of the motor and case for MOA's or to provide clearance for the drive shaft on shafty's. This is a completely new design feature for delrin links.

Crawler Innovations high clearance rear links have a 20 degree pitch on the axle side and a 90 degree on the chassis side. By doing this, the finished link has a smoother arch that is slightly lower in height.

Crawler Innovations high clearance rear links are machined to 5/16" in height by 1/4" in width. The link is thin to allow it to be used on multiple different manufacturer chassis designs. CI made this link to be a universal link like the other delrin links Crawler Innovations currently sells.
